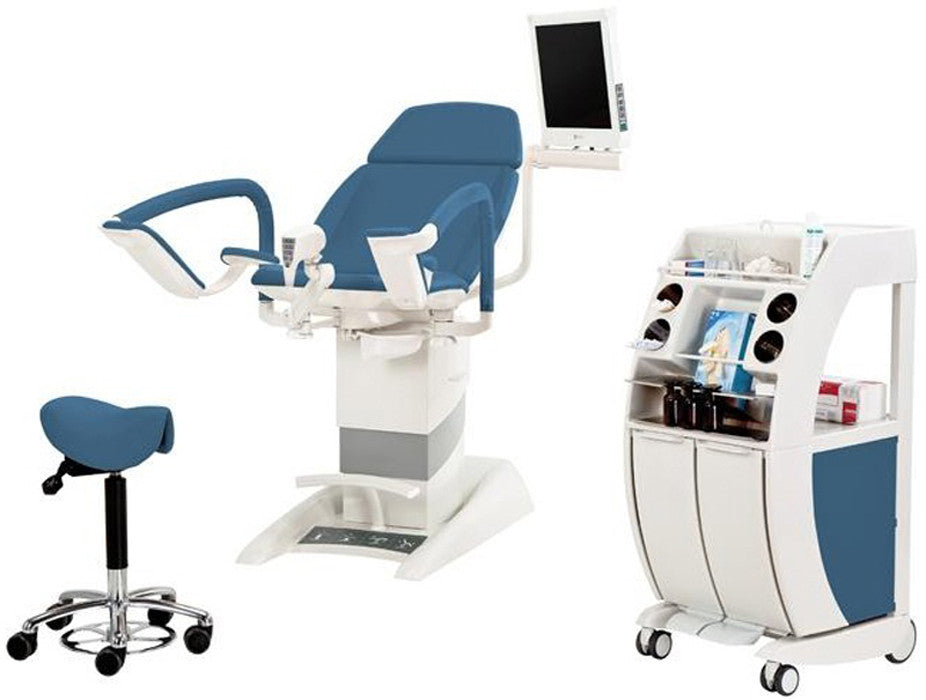

Gynecological Examination Chair GRACIE
You can choose from six product versions of the gynaecological chair GRACIE. It is up to you whether you prefer a seat in a basic version with standard footrests or Goepel type footrests. Highly integrated digital video-colposcope, with a choice of right or left screen.
Technical Parameters
| DIMENSIONS | |
| Width (seat part) | 600 mm |
| Total width | 760 mm |
| Maximum length | 1.700 mm |
| MAXIMUM LOAD | |
| Maximum patient weight | 180 kg |
Instrument trolley
| Length | 600 mm |
| Height | 1125 mm |
| Width | 520 mm |
| Capacity of waste bins | 17 l / 13 l |
| Capacity of bowl for speculums | 25 l |
| Capacity of upper bowl for speculums | 13 l |
Video colposcope
| Zoom | 1,5x-20x optical, 10x digital |
| Diameter of the visible area | 30 mm (10x zoom) |
| Working distance | 240-330 mm |
| Depth of field | 10 mm |
| Focus | auto, manual |
| Diagonal LCD | 17" |
| Number of colours | |
| Monitor resolution | 1280x1024px |
| Light source | LED (xold + warm) |
| Independently turn on/off light | yes |
| Filter for vein testing | green |
| Freeze - image freeze | yes |
