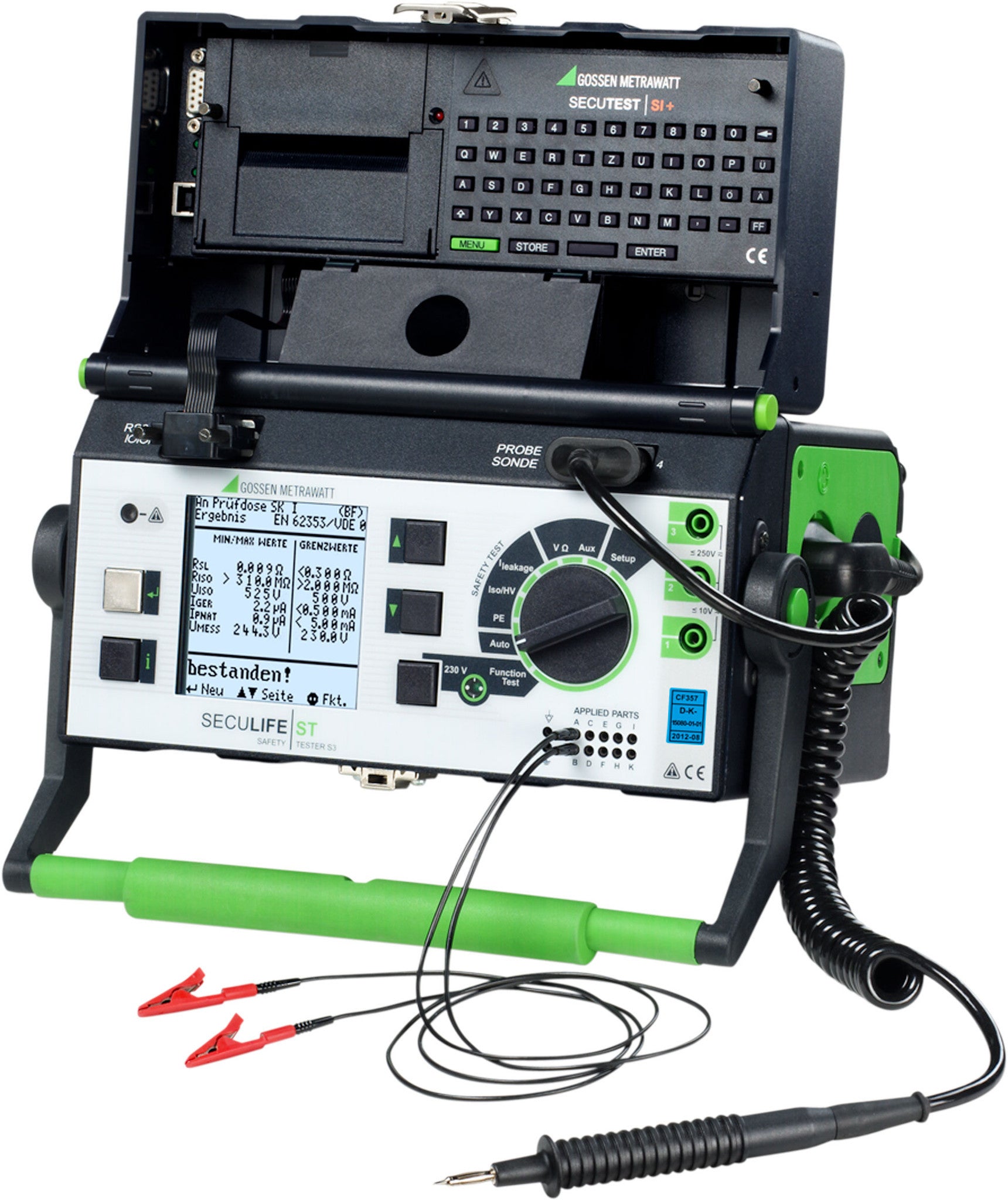

SECULIFE ST
The SECULIFE ST is the only measuring instrument available on the market which has been designed to test medical devices operated with 3-phase electrical current.
Technical Data
| Display | multiple backlit dot matrix display, 128 x 128 pixels |
| Dimensions | test instruments without high-voltage module: LxWxH: 292 mm x 138 mm x 243 mm test instruments with high-voltage module: LxWxH: 292 mm x 138 mm x 300 mm |
| Weight | standard device: approx. 4.5 kg device with HV test: approx. 5.24 kg device with 25 A PE test: approx. 5.5 kg with 25 A PE and HV test: approx. 5.9 kg |
| Power Supply | Line Voltage 103.5 V ... 126.5 V or 207 V ... 253 V Line Frequency 50 Hz or 60 Hz |
| Protection | housing: IP 40, connections: IP 20 per DIN VDE 0470 Part 1/EN 60529, Extract from table on the meaning of IP codes |
